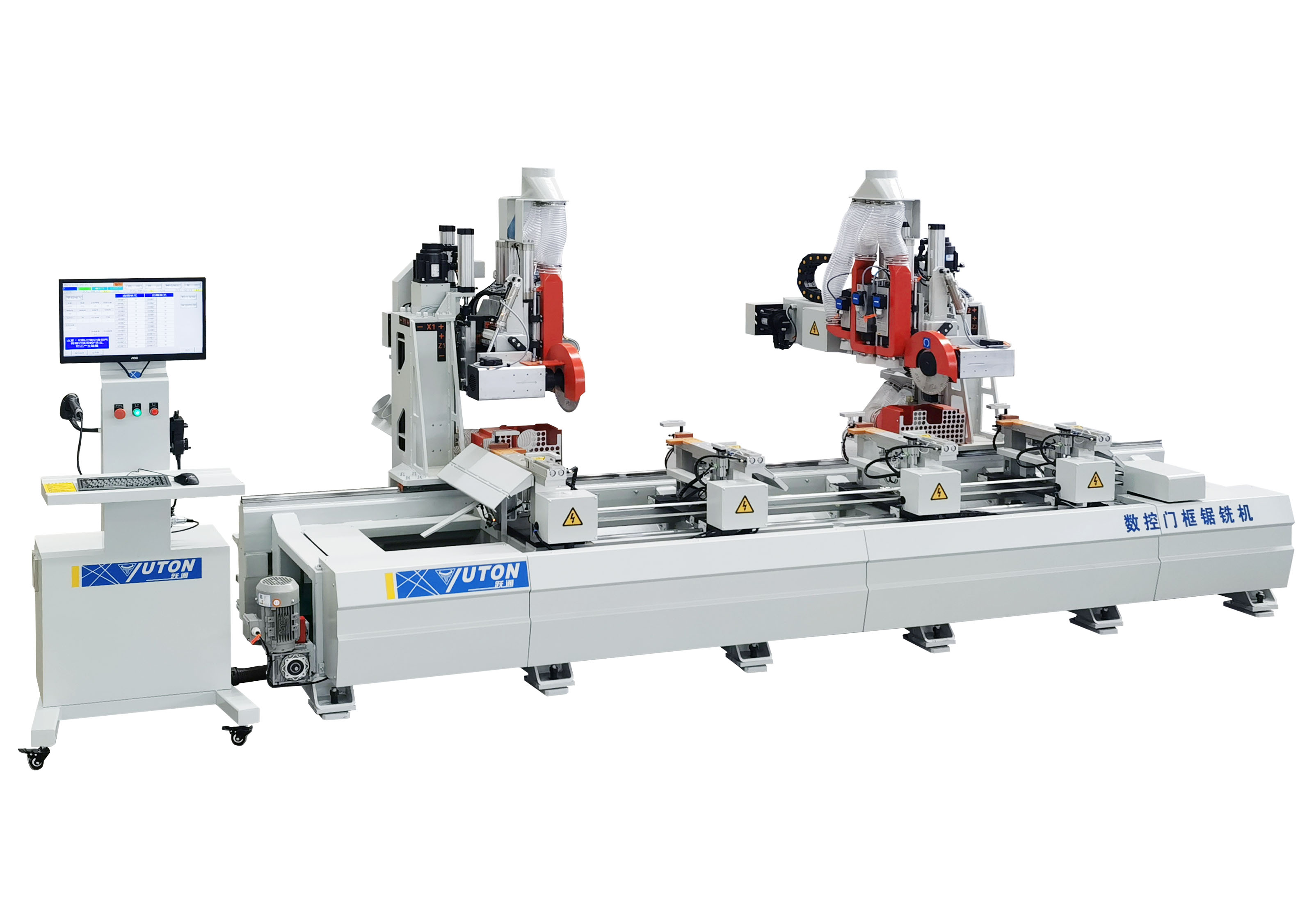

CNC DOOR FRAME CUTTING & MILLING MACHINE
Function:This machine is used for processing door frame,include 45/90 degree cutting,lock slot & hinge slot milling, installation face step milling (for 90 degree connection ),and L-shape architrave installation gap milling.
- Wide applicability:suitable for pressed type door frame with door-stop strip,main & deputy part splicing type door frame as well as entire door frame;
- High processing quality:cutting & milling at one time clamping to ensure high precision;automatic measure to eliminate thickness tolerance;left & right spindle milling to avoid edge broken;
- Easy operation:QR scanning is avaliable;Automatic exchange worktable for two type door frames with flat bottom or step bottom;
- Economical and practical:can be used as standalone machine or be connected in automatic production line.
| Workpiece length |
600-2600mm |
| Workpiece width |
90-350mm |
| Workpiece thickness |
18-40mm |
| Cutting motor |
2×3.7kw |
| Milling motor |
2×（2.2+2.2左旋+0.4）kw |
| Total power |
25kw |
| Overall dimensions |
4900×2600×2100mm |
| Weight |
3000kg |
|
